Overview of BAW stainless steel sanitary centrifugal pump:

The sanitary centrifugal pump is a single suction, single-stage, centrifugal sanitary pump, which is suitable for conveying various liquids such as milk, beverage, wine, etc. It is an indispensable conveying equipment in food, chemical, pharmaceutical and other industries. The suction temperature is about 80 º C. The high lift pump is especially suitable for applications in systems with large resistance such as tubular sterilization, yogurt temperature holding equipment, CIP cleaning, etc.

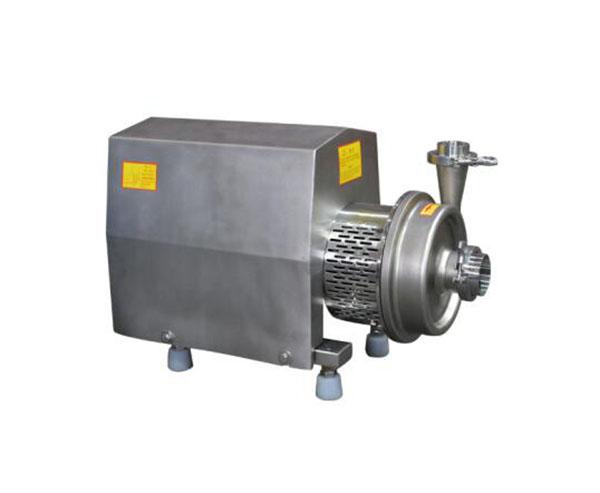

Picture of BAW stainless steel sanitary centrifugal pump

Structural features of BAW stainless steel sanitary centrifugal pump:

This series of sanitary centrifugal pump is mainly composed of pump body, pump seat and motor. Each part is connected by bolts.

The support foot under the base plate can be adjusted freely for easy installation without fixed installation foundation. During installation, the outlet pipe can be installed in vertical or horizontal direction according to different needs.

This series of pumps are designed with smooth transition, rigid structure and thick wall design.

In the selection of materials, the pump body, pump cover, impeller and other parts in contact with materials are all made of AISI316

Or AISI304 stainless steel.

The mechanical shaft seal is made of high-quality stainless steel and silicon carbide. It greatly improves the wear resistance and moisturizing type, and prolongs the service life.

"ABB" motor with IP55. F insulation and wide voltage structure is selected.

During fabrication, the pump body and impeller are precision cast integrally, and all parts are surface treated. The dimension clearance shall be ensured by special fixture during installation.

The shaft seal adopts an open structure, so even if there is a small amount of leakage at the shaft seal, it can be observed in time. The motor will not overflow even if it is not detected for a short time. Thus, the service life of the motor is guaranteed.

This series of pumps are fine and not easy to scale, especially suitable for CIP cleaning.

This series of pumps has simple structure, convenient disassembly, low noise, high efficiency, and gentle material handling, which meets the requirements of food hygiene and ensures the original flavor of the product.

Model selection parameters of BAW stainless steel sanitary centrifugal pump:

This data is for reference only, please refer to the actual order!

                                                                                              Model                          Flow                                 head                                   In/out                                           Power

Instructions for BAW stainless steel sanitary centrifugal pump:

During centrifugal sanitary installation, the position of the pump is lower than the suction liquid level (if the installation position of the pump is higher than the suction liquid level, tank pump is required before starting the pump). Before use, check whether the rotation direction of the impeller is correct; Whether the nuts of the pump inlet and outlet pipe joints are tightened; The sealing ring between the pump cover and the pump body is well padded. The parts in contact with materials shall be sterilized with steam before use to ensure food hygiene.

A butterfly valve shall be installed at the pump outlet to control the flow. Do not operate under overload for a long time to avoid damaging the motor.

CIP cleaning shall be carried out immediately after the pump is used to prevent material adhesion. If there is no CIP, manual cleaning is required. During cleaning, hot water can be used first, and then disassembled. Brush all parts of the pump in contact with materials with a brush, and then rinse them with clean water. After cleaning, install them in order.

If material drops on the ground behind the pump casing during use, it indicates that the shaft seal is leaking. At this time, the mechanical seal device on the shaft can be checked. If it is severely worn or the seal is damaged, it should be replaced or ground before use.
